The Bass50 comes with eight removable aluminum feet, allowing you to set it up vertically or horizontally based on your space, gear, and sound goals. Whether you're customizing your stage setup or optimizing bass direction in your trunk, the Bass50 can adapt.
Watch: Bass50 Feet Guide
What the Feet Are For
Each of the eight feet helps stabilize the Bass50 and protect the surface it’s sitting on. They’re designed to:
Support vertical or horizontal placement
Help manage bass direction (down-firing, up-firing, or forward-firing)
Keep the Bass50 secure during use or transit
You don’t need to adjust the feet for most setups, but it’s easy to do if needed.

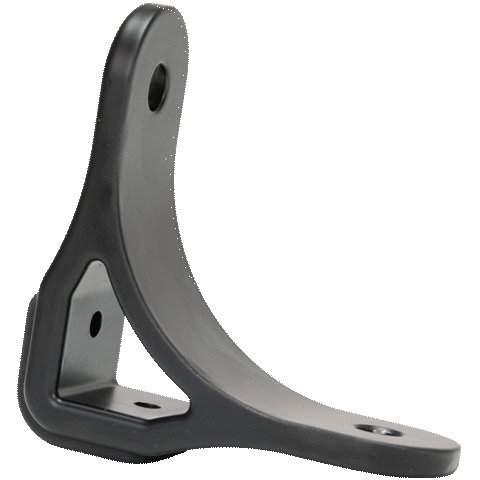

Feet Materials & Build
Material: Aluminum
Pads: Silicone
Bolts: Steel
Compatibility: Works with both the Bass50 and the Universal Port
How to Adjust or Remove the Feet

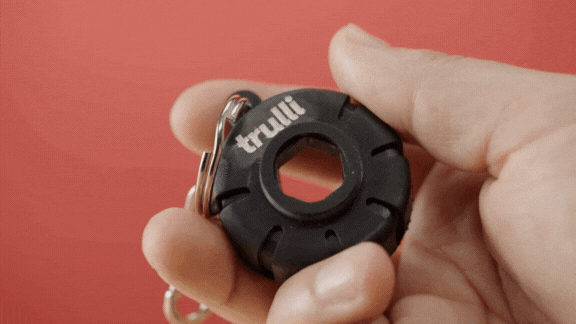

You can reposition or remove the feet using the included Trulli Bolt Tool (hex key).

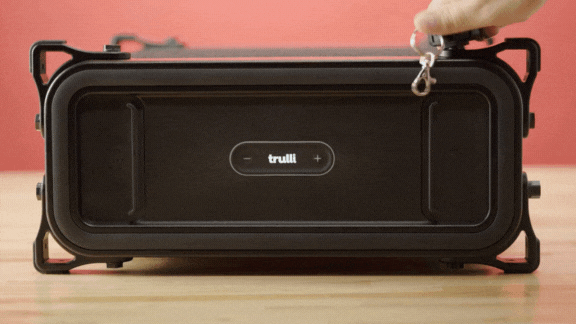

Loosen the bolts using the included hex head tool.
Remove the foot once the bolts are unscrewed.
Reposition the foot to your desired location—each side has multiple mounting points.
-
Reinsert and tighten the bolts by hand using the hex tool.
Don’t over tighten
The thicker edge of the foot should face outward, and the thinner edge inward
Placement Tips
Horizontal orientation: Place four feet on the long side
Vertical orientation: Place four feet on the short end
Trunk setups: Use feet placement to isolate vibrations and direct bass into the cabin
Portable setups: Keep feet on both sides so you can switch orientation on the fly
Need more ideas?
Check out our Bass50 Placement and Orientation Guide for best practices when setting up in different environments.
Final Notes
Every Bass50 comes with all eight feet pre-installed—ready to go out of the box. But if your setup needs a more tailored fit, the modular foot system makes it easy to customize.
Need help with placement or setup? Check out our [Bass50 Placement and Orientation Guide] or reach out to us at hello@trulliaudio.com.
