The Bass50’s unique design allows for three distinct orientations: down-firing, up-firing, and forward-firing, each offering different acoustic characteristics and benefits. By adjusting the feet and repositioning the carrying strap, you can tailor the Bass50’s performance to your space, your style, and your audience.
This section will guide you through:
- How to adjust the Bass50’s feet and carrying strap
- How to position the Bass50 for each firing orientation
- Tips for maximizing performance in different environments
From vehicle upgrades to outdoor events, these recommendations will help you find the best setup for your sound. Let’s explore each orientation to see how you can get the most out of your Bass50.

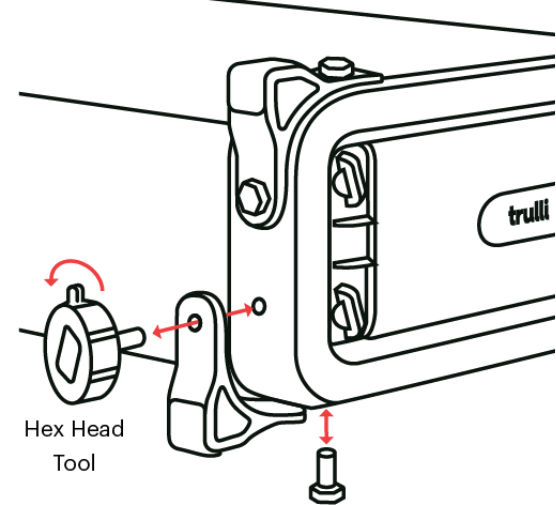

Adjusting the Feet
The Bass50 comes with eight feet that provide maximum stability in any orientation. While you don’t need to move or remove them for most setups, you can reposition or remove feet to customize your placement if needed.
How to Adjust:
- Use the Trulli Bolt Tool or quick-disconnect (QD) mechanism to remove or reposition feet.
- Configure the Bass50 for down-firing, up-firing, or forward-firing orientations by adjusting how the feet make contact with your surface.
- Reattach bolts securely, don’t over-tighten.
- The thicker side of each foot should face outward; the thinner side faces inward.
Watch: Bass50 Feet Guide
Adjusting the Carrying Strap
- The carrying strap can be re-positioned or removed using the same bolt system.
- Adjust the length by sliding the adjusters to your preferred height.
- The strap can also be used to help secure the Bass50 in vehicles or during transport.
Watch: Bass50 Strap Guide
Down-Firing Orientation
Purpose
In this configuration, the grille faces directly downward. This setup enhances low-frequency impact through boundary reinforcement, especially when placed on a solid surface.
Best Uses
- Trunks or under-seat vehicle installs
- Floor placement in home studios or home theaters
- Outdoor events or tailgates with a level base
How to Set Up
- Flip the Bass50 so the grille faces down.
- Ensure the four bottom-facing feet are attached (they should already be in place by default).
- If needed, adjust or remove feet on other sides for clearance or visual preference.
- Place the Bass50 on a solid, level surface.
Tips
- Down-firing typically gives the most “felt” bass impact.
- Leave a few inches of clearance beneath the unit for best performance.
Up-Firing Orientation
Purpose
Up-firing disperses bass energy upward and outward, providing a more immersive and even room-filling response.
Best Uses
- Low-ceiling indoor rooms
- Studio and rehearsal spaces
- Beneath speaker stands or risers
How to Set Up
- Flip the Bass50 so the grille faces up.
- Ensure the four top-facing feet are attached to provide proper elevation and grip.
- Remove or reposition other feet if they interfere with stability.
Tips
- Up-firing works well in environments where the bass should blend into the mix.
- Try placing the unit near a wall corner to enhance low-end warmth.
Forward-Firing Orientation
Purpose
This layout sends bass forward like a traditional speaker. It’s best when you want targeted bass projection with clear directionality.
Best Use
2.1 systems and studio monitors
Vehicles with specific listening zones
Live setups where forward bass throw is preferred
How to Set Up
Turn the Bass50 onto its side so the grille faces forward (either left or right).
Decide which side should face up. In most cases, it’s the control panel side.
Ensure the four corners contacting the surface have feet installed to prevent rocking or sliding.
Adjust or remove feet on the opposite side if needed for balance or clearance.
Tips
Pair this orientation with room treatments or vehicle panels to fine-tune bass focus.
A great choice when you want precise bass directionality.
